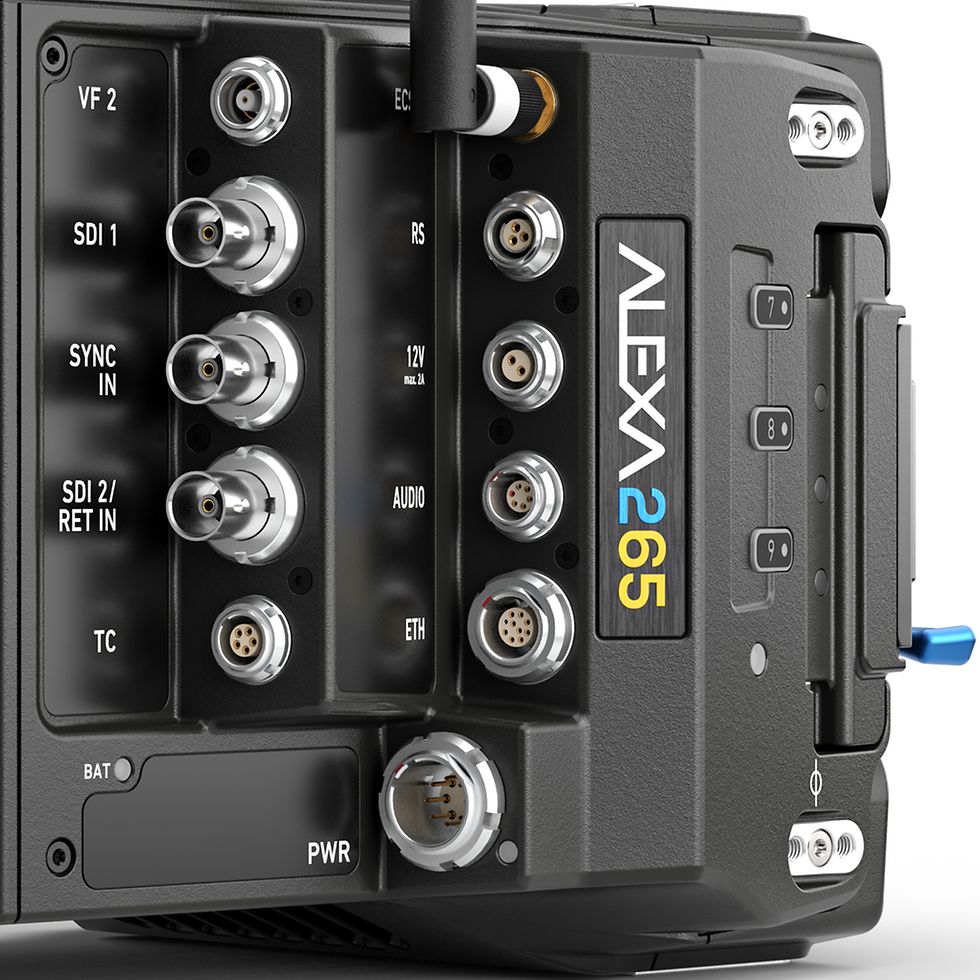

ARRI ALEXA 265
ActiveUpdated by GEARMATH
Compact 65 mm digital cinema camera built around the A3X Rev.B sensor, recording 6.5K open-gate ARRIRAW with 15 stops of dynamic range in a 3.3 kg body that takes LPL lenses.
View: Blueprint · Photo
Technical Registry
Sensor
| Sensor | 65 mm format ARRI A3X Rev.B CMOS, Bayer pattern |
|---|---|
| Sensor resolution | 6560 x 3100 (54.12 x 25.58 mm) |
| Photosite pitch | 8.25 μm |
| Dynamic range | 15 stops |
| Exposure index | EI 160 - 6400 |
| Sensor frame rates | 0.75 - 60 fps |
Recording
| Recording format | MXF/ARRIRAW |
|---|---|
| Recording media | Codex Compact Drive 1TB / 2TB |
| Max frame rate (6.5K open gate) | 60 fps |
| Video outputs | 2x 12G-SDI |
Physical
| Weight | ~3.3 kg (body with antennas and LPL mount) |
|---|---|
| Lens mount | ARRI LPL (LBUS); PL, EF and Leitz M options |
| Power input | 20.5 - 33.6 V DC |
| Power consumption | ~75 W (body and MVF-2) |
| Viewfinder | MVF-2 OLED with 4-inch flip-out monitor |
