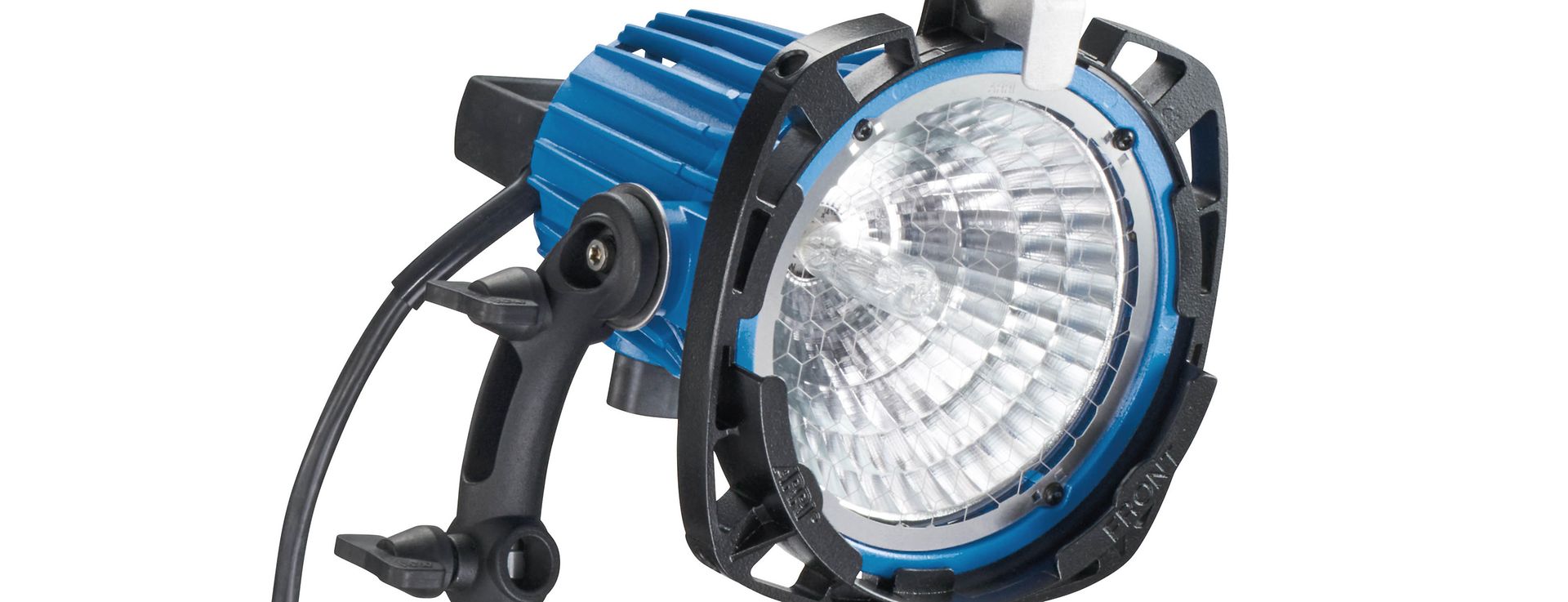

ARRI ARRILITE 750 Plus Open Face
ActiveUpdated by GEARMATH
Lightweight 750 W open-face tungsten light with a parabolic facetted reflector and 21-73 degree focus, accepting HPL and other lamps from 375 to 800 W.
View: Blueprint · Photo
Technical Registry
Lighting
| Lamphead type | Open Face with parabolic facetted reflector, 750 W |
|---|---|
| Lamp type | HPL** 750 W, 575 W, 375 W; GKV*** 600 W, FKR 650 W, HX 800 W |
| Power consumption | 800 W, 750 W, 650 W, 600 W, 575 W, 375 W |
| Colour temperature | 3,200 K |
| Beam angle | 21° to 73° |
| Dimming | yes, 0 to 100 % via external dimming system |
| Voltage range | 100 to 240 V |
| Lamp base | G9.5 |
Physical
| Weight (net) | approx. 2 kg |
|---|---|
| Dimensions (HxWxL, excl. pin) | 226 x 230 x 224 mm |
| Lens / UV glass diameter | 150 mm |
| Accessory diameter | 168 mm |
| Mounting | Socket 16 mm / 5/8" (0.6") |
| Mains plug | Schuko, Bare Ends |
| Protection class / IP rating | I / IP20 |
