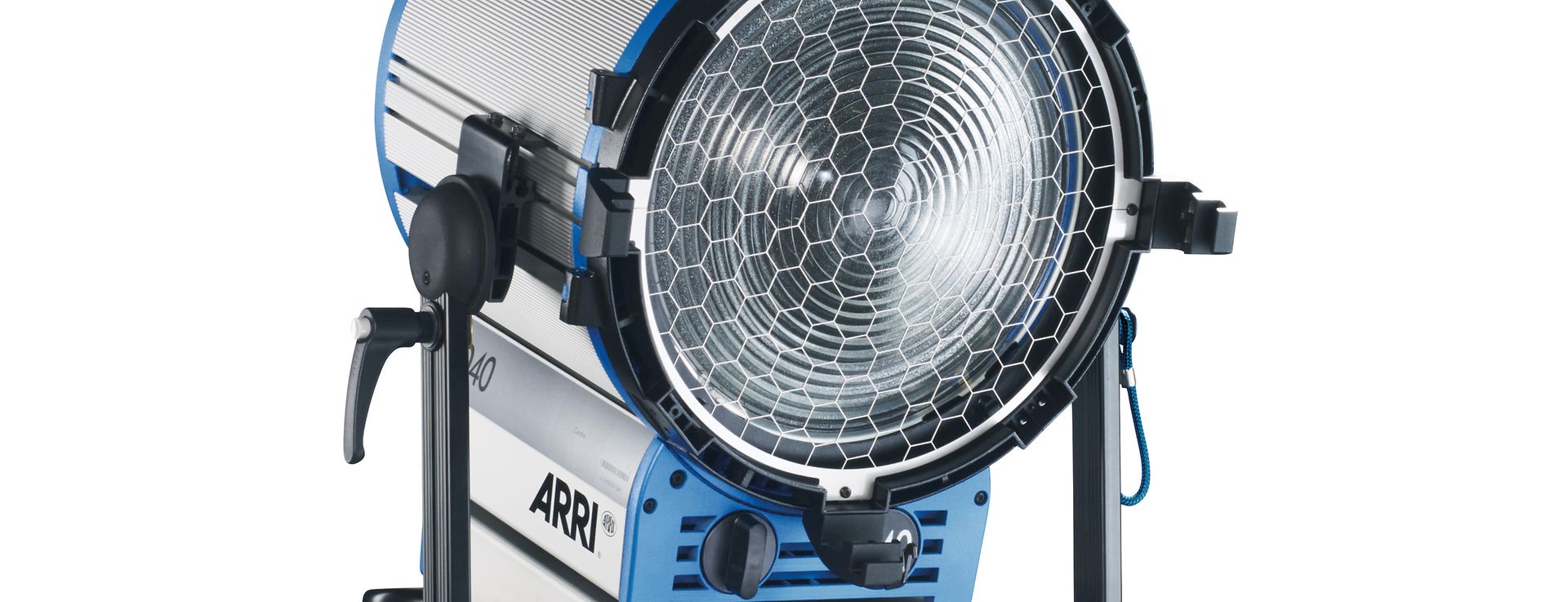

ARRI True Blue D40 HMI Fresnel
ActiveUpdated by GEARMATH
4 kW True Blue HMI fresnel with a 300 mm lens and broad 6.5-61 degree focus range, an 18 kg head for large daylight setups.
View: Blueprint · Photo
Technical Registry
Lighting
| Lamphead type | Fresnel, 4,000 W |
|---|---|
| Lamp type | Metal Halide 4,000 W/SE |
| Power consumption | 4,000 W |
| Colour temperature | 6,000 K |
| Beam angle | 6.5° to 61° |
| Dimming | yes, 50 to 100 % via ARRI Ballast Unit |
| Voltage range | 200 V |
| Lamp base | G38 |
Physical
| Weight (net) | approx. 18.0 kg |
|---|---|
| Dimensions (HxWxL, excl. pin) | 727 x 534 x 403 mm |
| Lens / UV glass diameter | 300 mm |
| Accessory diameter | 400 mm |
| Mounting | Spigot 28 mm / 1 1/8" (1.1") |
| Mains plug | VEAM, Schaltbau (GTV-Standard) |
| Protection class / IP rating | I / IP23 |
