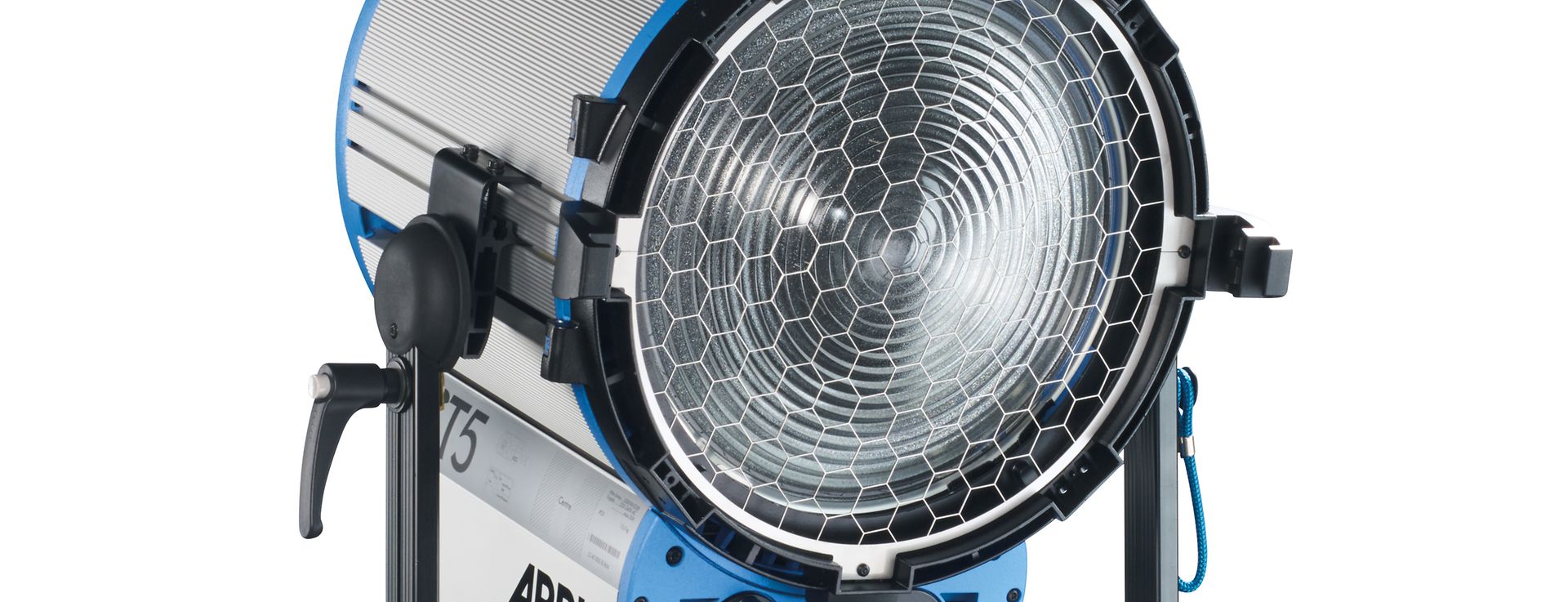

ARRI True Blue ST5 Studio Fresnel
ActiveUpdated by GEARMATH
5 kW studio tungsten fresnel with a 300 mm lens and 9-62 degree focus range for large TV studios and stages.
View: Blueprint · Photo
Technical Registry
Lighting
| Lamphead type | Fresnel, 5,000 W |
|---|---|
| Lamp type | 230 V: 5,000 W (CP85); 120 V: 5,000 W (DPY/CP29) |
| Power consumption | 5,000 W |
| Colour temperature | 3,200 K |
| Beam angle | 9° to 62° |
| Dimming | yes, 0 to 100 % via external dimming system |
| Voltage range | 220 to 240 V |
| Lamp base | G38 |
Physical
| Weight (net) | approx. 15 kg |
|---|---|
| Dimensions (HxWxL, excl. pin) | 595 x 518 x 393 mm |
| Lens / UV glass diameter | 300 mm |
| Accessory diameter | 400 mm |
| Mounting | Spigot 28 mm / 1 1/8" (1.1") |
| Mains plug | Bare Ends |
| Protection class / IP rating | I / IP23 |
