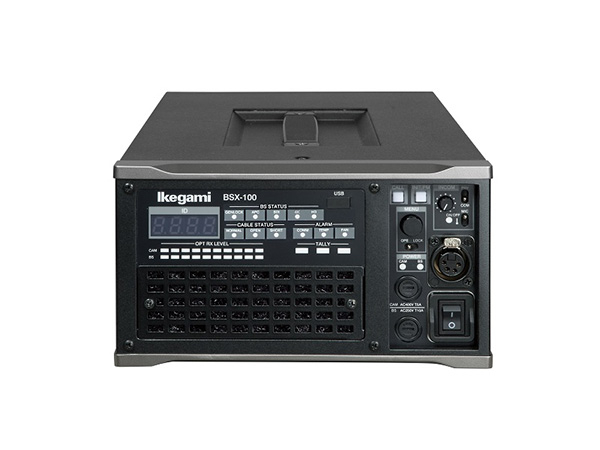

Ikegami BSX-100 Base Station
ActiveUpdated by GEARMATH
Half-width 7 kg base station for UNICAM XE cameras with 12G-SDI and HD outputs, return video, optional MoIP and Ethernet trunk over hybrid fibre cable.
View: Blueprint · Photo
Technical Registry
Specifications
| HD QTV | 2x BNC |
|---|---|
| 4K QTV | 1x BNC |
| MoIP (RET, QTV) | 2x SFP |
| Video Out | OUT 1-4 |
| OUT 5-8 | 4x BNC |
| 12G OUT 1-4 | 4x BNC |
| MoIP | 2x SFP |
| HD TRUNK | 1x BNC |
| 4K TRUNK | 1x BNC |
| System I/F | COMMUNICATION |
| Mic Gain Remote | REMOTE |
| Data Trunk CH-1 | DATA TRK-1 |
Physical
| Input Voltage | 100 to 240 V AC ±10 % |
|---|---|
| Power Consumption | Max. 100 VA |
| Ambient Temperature | Operation: 0 °C to +40 °C (32 °F to +104 °F) * Storage: -30 °C to +60 °C (-22 °F to +140 °F) |
| Dimensions (Excluding protrusion) | W 216 x H 123.6 x D 417.2 mm W 8.5 x H 4.9 x D 16.4 inches |
| Weight | Approx. 7 kg / Approx. 15.5 lb |
