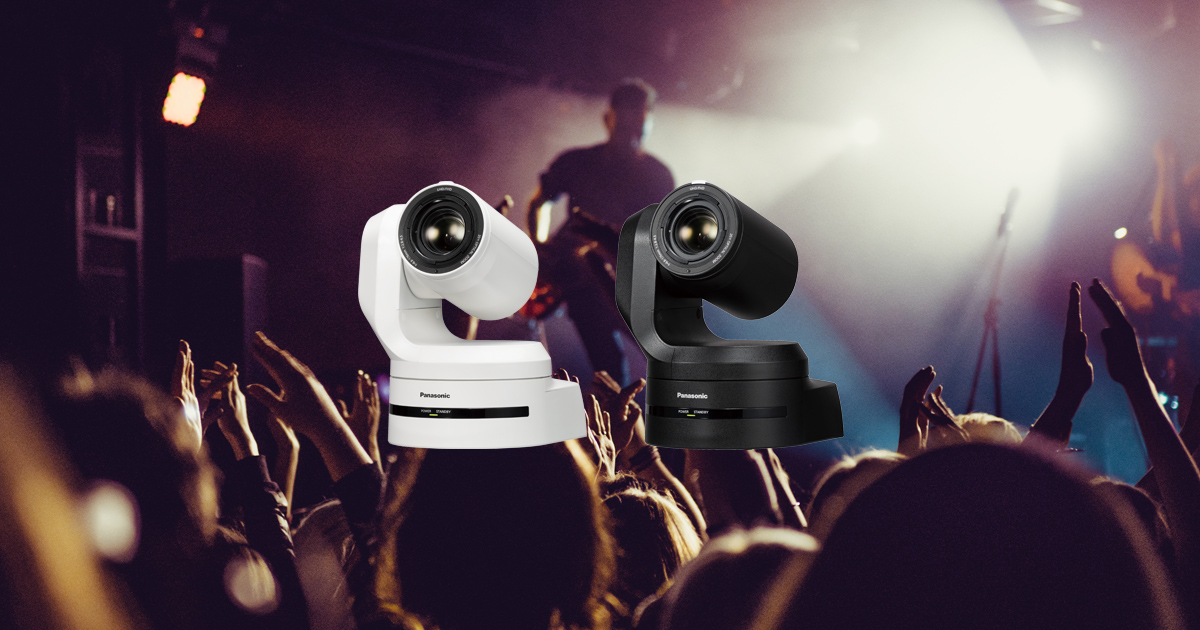

Panasonic AW-HE145 HD PTZ Camera

Active
Panasonic·camera·TBD

Updated by GEARMATH

HD remote camera with a 1-type sensor and 20x optical zoom, rated to 2 lx for dark venues, with 3G-SDI, HDMI and IP outputs plus PoE++ power.

View: Blueprint · Photo
Panasonic AW-HE145 HD PTZ Camera
ShareSuggest a changeROI CalculatorProjects
Manufacturer page · pro-av.panasonic.net

Technical Registry

Sensor

Sensor1-type MOS, 20.18 MP
Lens20x, F2.8-4.5, 24.5-490 mm equiv.
Min Illumination2 lx

Recording

Outputs3G-SDI, HDMI 2.0, IP

Physical

WeightApprox. 4.1 kg (excl. bracket)
Dimensions213 x 267 x 219 mm
Power12 V DC or PoE++
