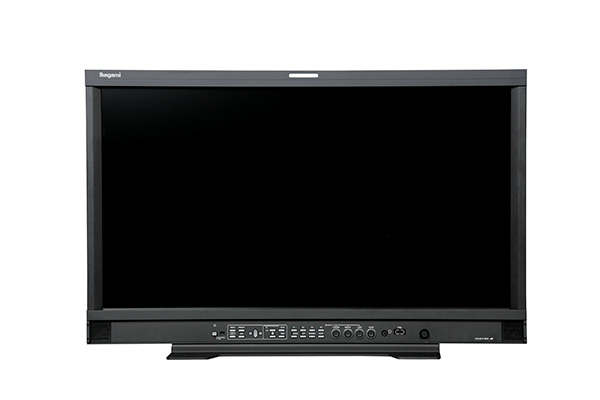

Ikegami HQLM-3120W 31-inch 4K/HD Monitor
ActiveUpdated by GEARMATH
31-inch 4096x2160 10-bit LCD production monitor with 12G-SDI, 3G-SDI and HDMI inputs, BT.2100 and ST 2084 EOTFs, S-Log3 and BT.2020 colour space options at 350 nits.
View: Blueprint · Photo
Technical Registry
Monitoring
| Display Performance | a-Si TFT LCD |
|---|---|
| LCD Panel | Stripe |
| Number of Pixels | H 4096 x V 2160 |
| Pixel Pitch | W 0.1704 x H 0.1704 mm |
| Viewing Angle | 178° (up&down, left&right) (CR ≥ 10) |
| Number of Display Colors | 1.07 billion colors (RGB each have 10-bit) |
| Contrast Ratio | 1500:1 (typ.) |
| Brightness | 350 cd/ｍ2 (max.) |
| Display Size | 17:9, W 698 x H 368 mm |
| EOTF | ITU-R BT.2100, SMPTE ST.2084, 2.2, 2.4, 2.6, S-Log, S-Log3, ACES Proxy |
| Color Space | ITU-R BT.2020*, ITU-R BT.709, DCI-P3 D65*, DCI-P3*, ACES*, Adobe RGB*, S-Gamut, S-Gamut3.Cine, Panel *Color space can not be fully displayed. |
| 12G-SDI | 2 BNC inputs / 2 BNC outputs (Active Loop Through) 70 m with 5.5 CUHD cable (max.) |
Physical
| Color Temperature Setting | D65 / D93 / USER setting (Files 1 to 8) |
|---|---|
| Power Requirement | 100 to 120 / 200 to 240 V AC +/-10%, 50/60 Hz |
| Power Consumption | Approx. 150 W |
| Ambient Temperature | Operation: 0 to +40 ˚C (+32 to +104 ˚F) (20 to 85% humidity, non-condensation ) Storage: -20 to +60 ˚C (-4 to +140 ˚F) (5 to 85% humidity, non-condensation ) |
| Dimensions | W 750 x H 459 x D 107.2 mm (W 29.52 x H 18.07 x D 4.22 inches) |
| Weight | 14.5 kg (31.96 lbs) |
