IP video decoder that pulls NDI, SRT, RTMP and other streams and outputs them on HDMI and SDI, including multi-view layouts for monitoring several sources on one screen.

View: Blueprint · Photo

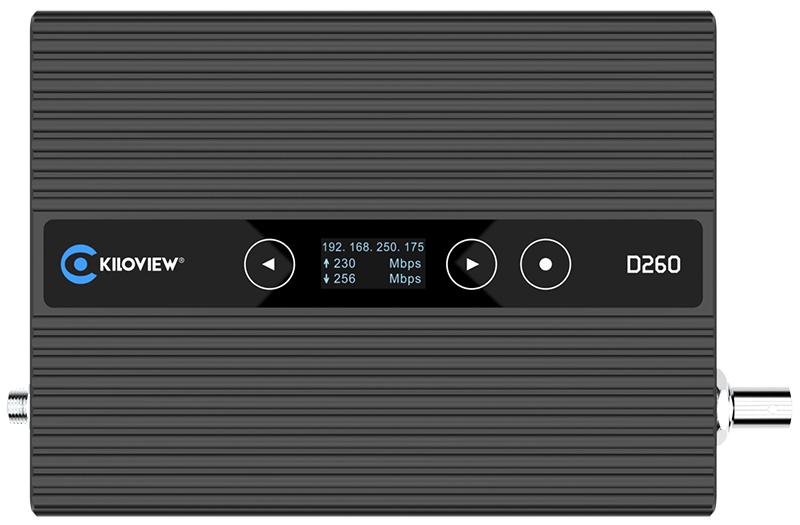

Kiloview D260 Multiview Decoder
ShareSuggest a changeROI Calculator
Manufacturer page · www.kiloview.com

Technical Registry

Monitoring

Video ResolutionHDMI Output:; 1920*1080p 60/50/30/25/24fps; 1920*1080i 60/50fps; 1280*720p 60/50/30/25/24fps; SDI Output:; 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps
Video Decoding Capability4-channel simultaneous 1080P60 decoding (1 channel for NDI High Bandwidth)
Video DecodingH.264(AVC), H.265(HEVC)
Streaming ProtocolsNDI High Bandwidth/ NDI HX2 / NDI HX3 / SRT / RTMP / RTMPS / HLS / TS over UDP / RTP / RTSP
Multi-View LayoutsCustom 1/2/3/4-screen layouts
Audio DecodingAAC / MPEG-4 / MPEG-2 / G.711 / Opus / LPCM
Audio Channels4-channel SDI embedded audio; 2-channel HDMI embedded audio; 1× 3.5mm Line-out (2-channel)
PTZ ControlReverse PTZ control support

Physical

Video Port1*3G-SDI; 2*HDMI
Interlaced Video Supportsupport Interlaced & Progressive IP stream decoding
Network Port2× 1000Mbps Ethernet ports
USB Port1*USB 2.0 Type-A; 1*USB 3.0 Type-C
Power SupplyDC 12V/1A
Power Consumption8W(MAX)
Weight360g
Dimensions140mm*104mm*25mm
Working Temperature-20℃~60℃
