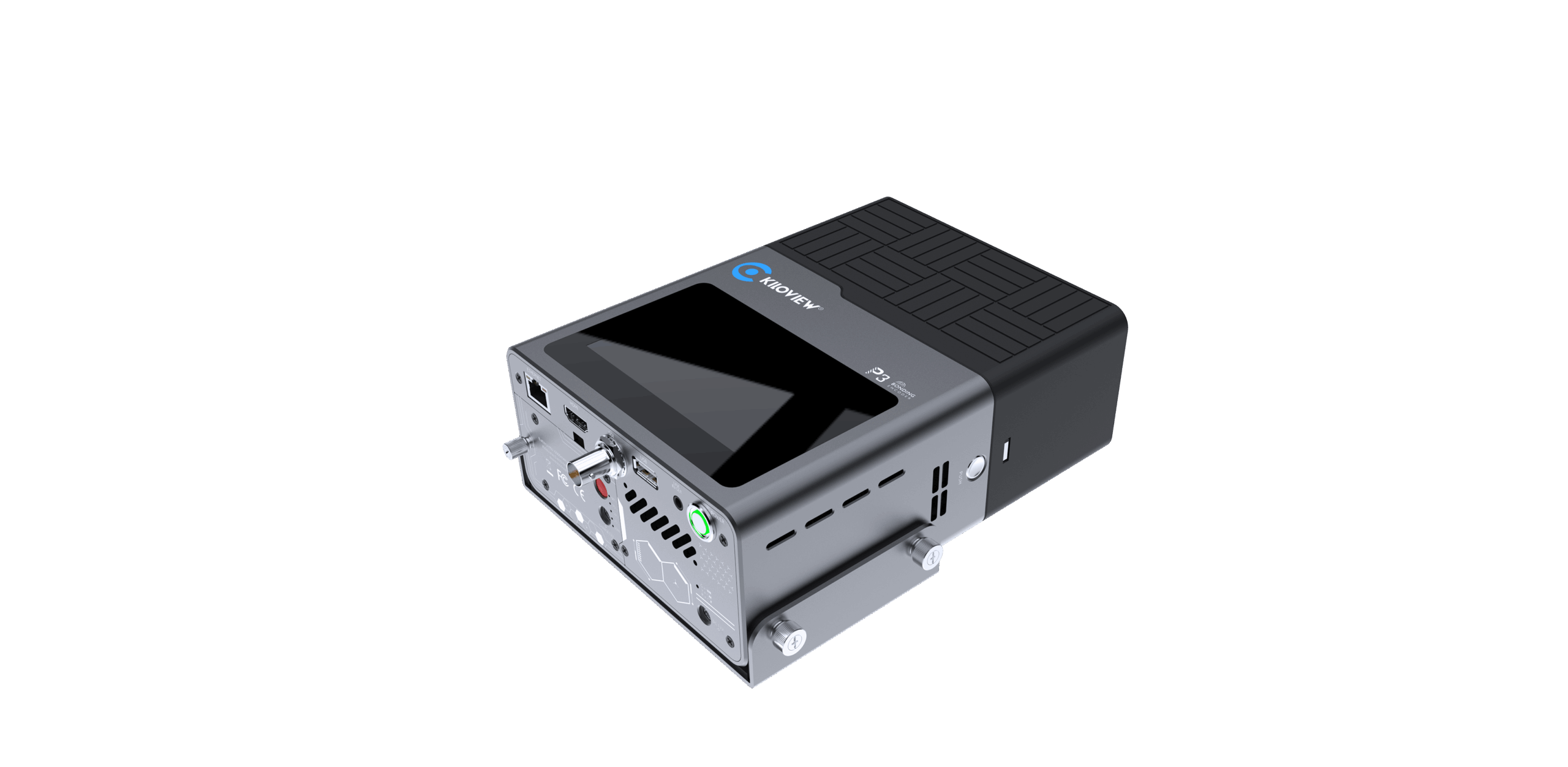

Kiloview P3 Bonded 4G/5G Encoder

Active
Kiloview·monitoring·TBD

Updated by GEARMATH

Camera-top bonding encoder that aggregates multiple 4G/5G modems, Wi-Fi and Ethernet for live H.265 streaming from the field, with internal battery and SDI/HDMI inputs.

View: Blueprint · Photo
Kiloview P3 Bonded 4G/5G Encoder
ShareSuggest a changeROI Calculator
Manufacturer page · www.kiloview.com

Technical Registry

Monitoring

Video ResolutionHDMI Input/Loop out：; 3840×2160p 30fps; 1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps; 1920×1080i 50/59.94/60fps; 1280×720p 29.97/30/50/59.94/60fps; 720×576i 50fps (PAL SD)
Video EncodingH.265(HEVC)，H.264(AVC)，M-JPEG
Streaming ProtocolsNDI HX2/NDI HX3/SRT/RTMP/ RTMPS/ HLS/WHIP/TS over UDP/RTSP
Audio EncodingAAC，G.711
Audio Channels4-channel SDI embedded audio; 4-channel HDMI embedded audio; 4-channel USB embedded audio; 1*3.5mm Line in 2-channel audio
Bonding; Performance4 channels of 5G/4G cellular network, WiFi (2.4G/5G), Ethernet
Wireless Connectivity4× 4G/5G cellular modules; 1× Wi-Fi 5 module
Pre-encoding ProcessingRotation, Mirroring, Cropping
SEI TimecodeSynchronized to NTP or system time
Camera Start/Stop SynchronizationSDI Interface supports REC-RUN mode
Recording and StorageSD card, External USB storage or NAS
Recording FormatsMP4，MOV, TS

Physical

Video Port1× 3G-SDI; 1× HDMI 1.4b; 1*USB-A
Audio Port1*3.5mm Line in
Network Port1 × 1000Mbps Ethernet Ports
Battery1× Built-in Battery Module (Non-removable) / Capacity: 3300mAh; 1× Removable Battery Module / Capacity: 6600mAh
Battery Life≥5 hours (without battery replacement)
Power SupplyDC 12V/3A
Weight2000g (Main unit only)
Dimensions211*143*68mm
Working Temperature-15℃~45℃
