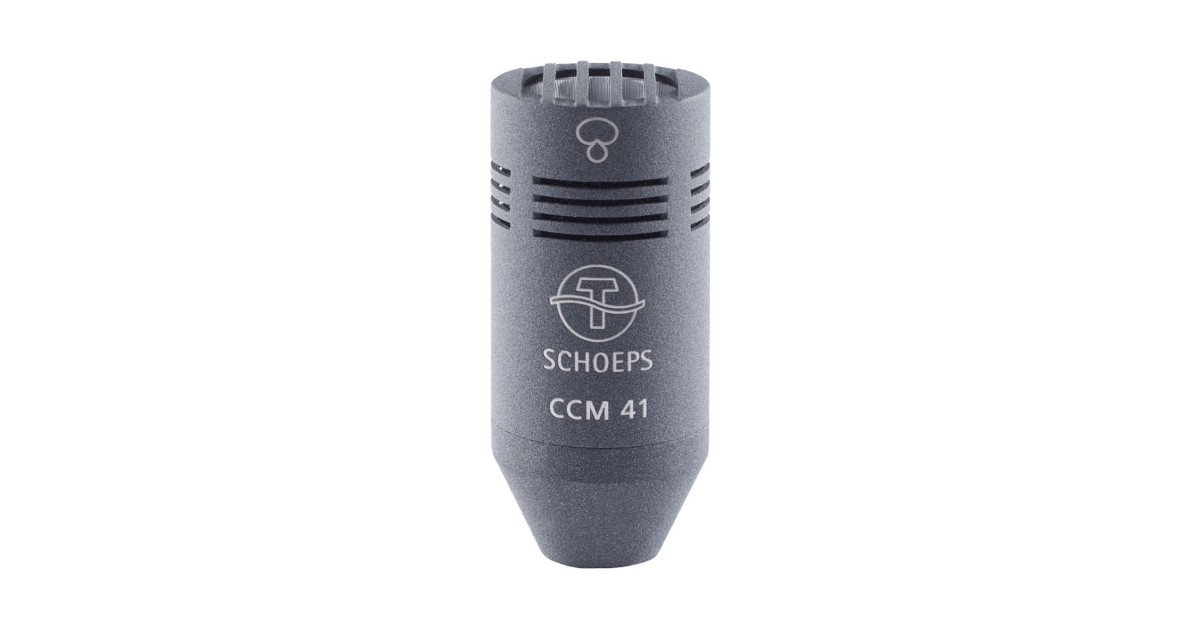

Schoeps CCM 41 Compact Microphone
ActiveUpdated by GEARMATH
One-piece compact supercardioid with the MK 41 capsule built into a 46 mm body, offered with Lemo or XLR output for discreet boom and plant work.
View: Blueprint · Photo
Technical Registry
Audio
| Polar Pattern | Supercardioid |
|---|---|
| Max SPL (0.5% THD) | 136 dB-SPL (P48), 128 dB-SPL (P12) |
| Low Cut | 20 Hz, 12 dB/oct. |
| Max Output Voltage | 2,6 V (8,3 dbV) with 2 kΩ load |
Physical
| Powering | P48 / >40 V, P12 / >10 V |
|---|---|
| Current Draw | 4 mA (P48), 3,6 mA (P12) |
| Output | Lemo (CCM-L) or XLR-3M (CCM-K), analog, 1 channel |
| Output Impedance | 90 Ω @ 1 kHz |
| Length | 46 mm (CCM-L) |
| Diameter | 20 mm |
| Weight | 45 g (CCM-L) |
