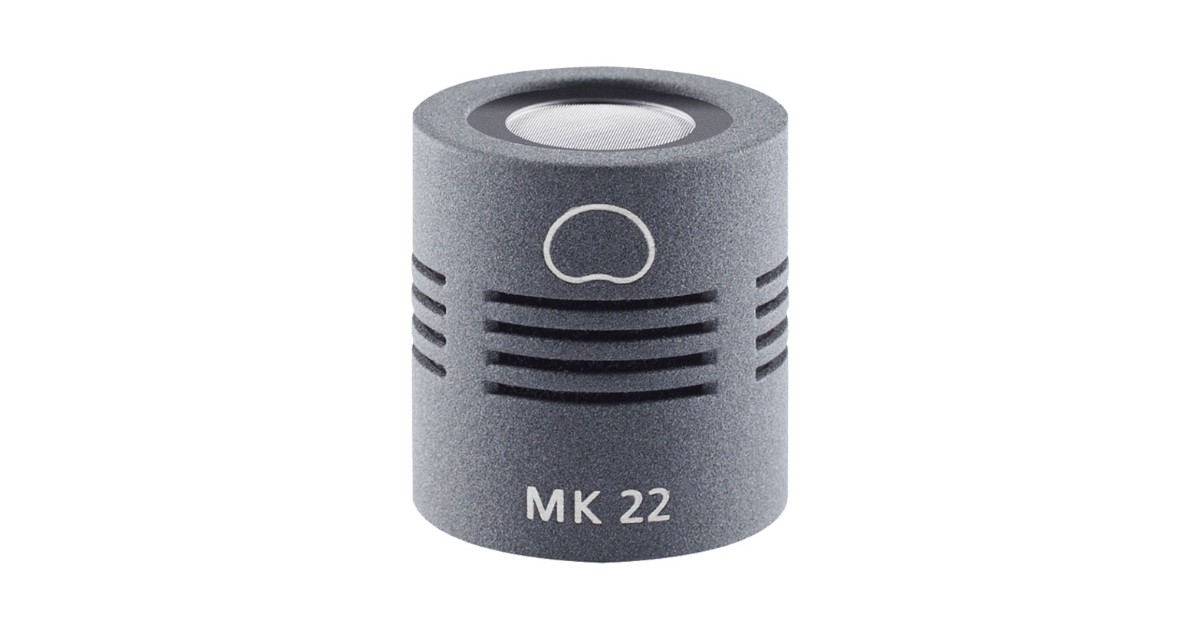

Schoeps MK 22 Open Cardioid Capsule
ActiveUpdated by GEARMATH
Open-cardioid Colette capsule with a wider acceptance than MK 4 and an even diffuse-field response, used for spot miking, choirs and ambience.
View: Blueprint · Photo
Technical Registry
Audio
| Polar Pattern | Open Cardioid |
|---|---|
| Frequency Range | 40 Hz - 28 kHz with CMC 6 / CMR, 40 Hz - 42 kHz with CMC 6xt |
| Sensitivity | -36,5 dB (V/Pa), 15 mV/Pa with CMC 6 |
| Self Noise (A-weighted) | 13 dB with CMC 6 |
| SNR (A-weighted) | 81 dB with CMC 6 |
| Max SPL (0.5% THD) | 130 dB-SPL with CMC 6 |
Physical
| Length | 22 mm |
|---|---|
| Diameter | 20 mm |
| Weight | 17 g |
