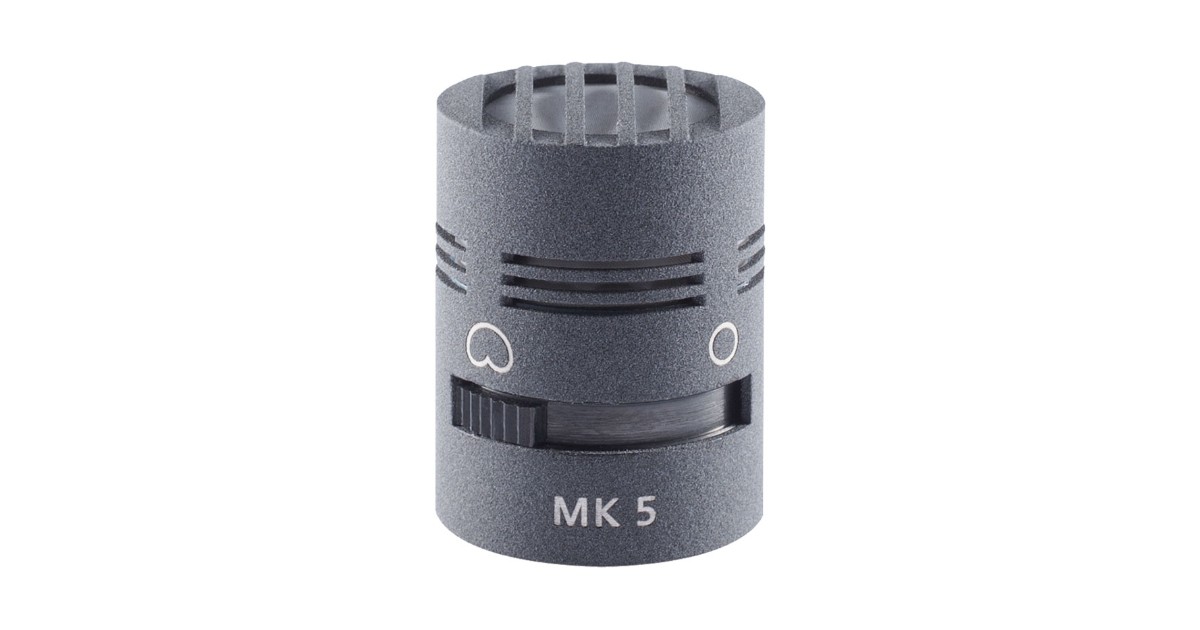

Schoeps MK 5 Switchable Capsule
ActiveUpdated by GEARMATH
Colette capsule switchable between omni and cardioid with a slide control, giving one capsule two pickup patterns for flexible location kits.
View: Blueprint · Photo
Technical Registry
Audio
| Polar Pattern | Cardioid |
|---|---|
| Frequency Range | 40 Hz - 26 kHz with, 40 Hz - 41 kHz with CMC 6xt |
| Sensitivity | -37 dB (V/Pa), 14 mV/Pa |
| Self Noise (A-weighted) | 13 dB |
| SNR (A-weighted) | 81 dB |
| Max SPL (0.5% THD) | 131 dB-SPL with CMC 6, 135 dB-SPL with CMC 1, Mechanical Specifications |
Physical
| Length | 27 mm |
|---|---|
| Diameter | 20 mm |
| Weight | 25 g |
