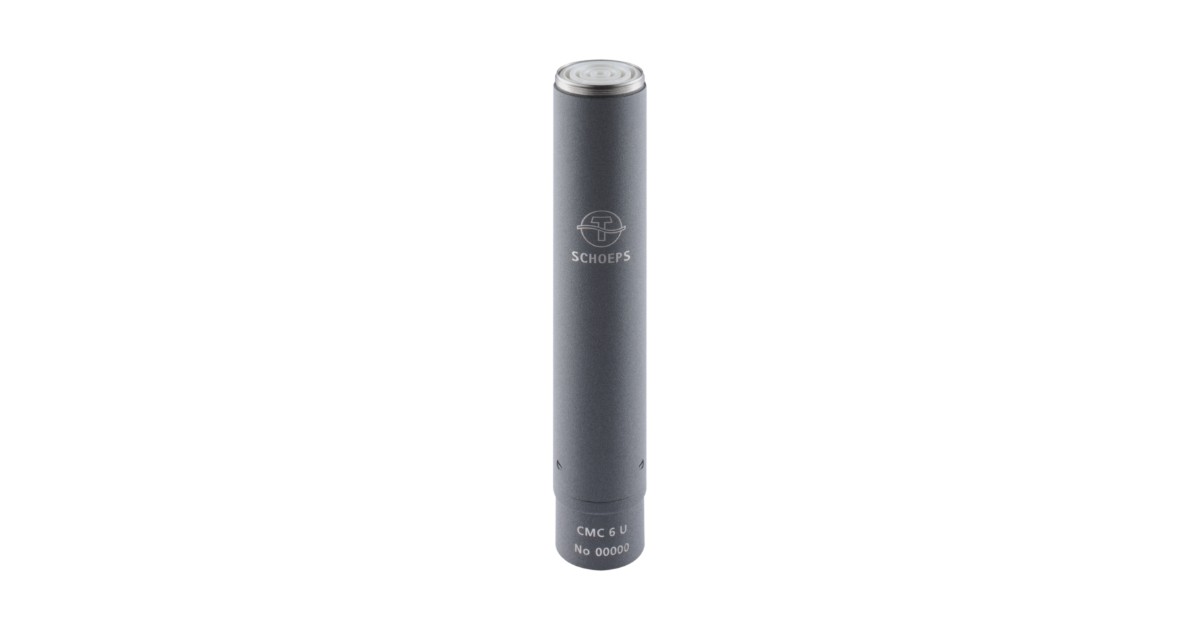

Schoeps CMC 6 Microphone Amplifier
ActiveUpdated by GEARMATH
The classic Colette modular amplifier body that accepts any MK capsule, running on P48 or P12 phantom with an XLR-3M output; the backbone of countless boom and studio setups.
View: Blueprint · Photo
Technical Registry
Audio
| Frequency Range | 20 Hz - 20 kHz |
|---|---|
| Max SPL (0.5% THD) | with MK 4: 131 dB-SPL (P48, P12) |
| Low Cut | 20 Hz, 12 dB/oct. |
| Max Output Voltage | 1 V (0 dBV) with 1 kΩ load |
Physical
| Powering | P48 / 20-52 V P12 / 10-13 V |
|---|---|
| Current Draw | 4 mA (P48) 8 mA (P12) |
| Output | XLR-3M, analog, 1 channel |
| Output Impedance | 42 Ω |
| Length | 116 mm / ~4,5" |
| Diameter | 20 mm / ~0,8" |
| Weight | 60 g / 2,1 oz |
