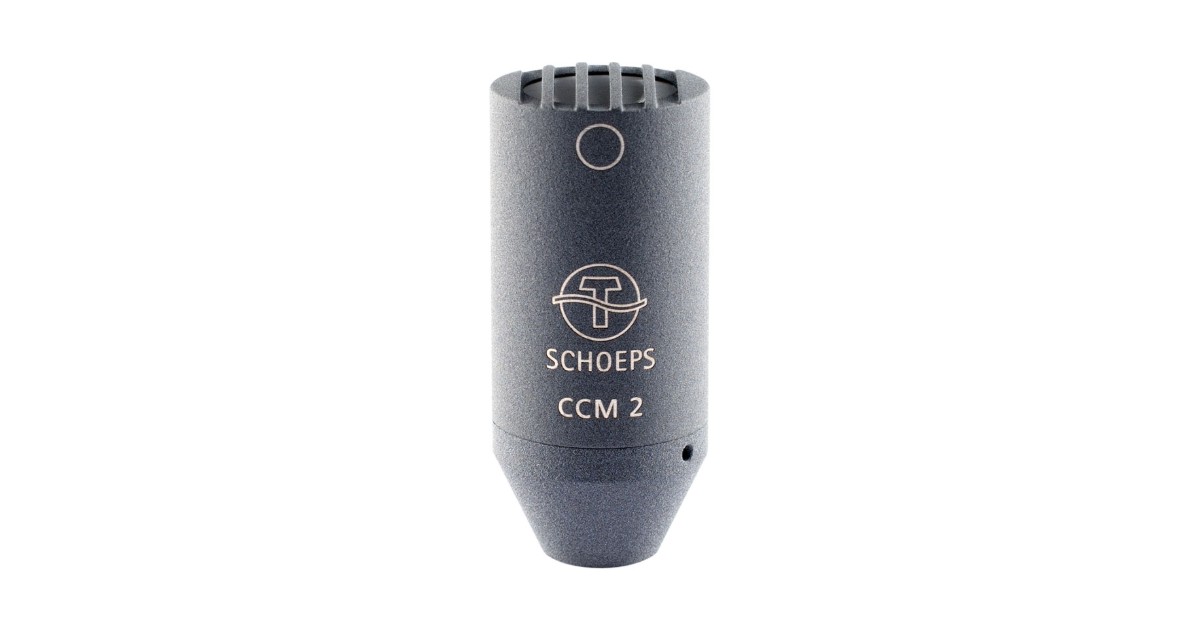

Schoeps CCM 2 Compact Microphone
ActiveUpdated by GEARMATH
Compact omnidirectional condenser in the CCM series, a short one-piece mic for ambience, spaced arrays and hidden plant positions.
View: Blueprint · Photo
Technical Registry
Audio
| Polar Pattern | Omnidirectional |
|---|---|
| Max SPL (0.5% THD) | 135 dB-SPL (P48), 127 dB-SPL (P12) |
| Low Cut | 20 Hz, 12 dB/oct. |
| Max Output Voltage | 2,6 V (8,3 dbV) with 2 kΩ load |
Physical
| Powering | P48 / > 40 V, P12 / > 10 V |
|---|---|
| Current Draw | 4 mA (P48), 3,6 mA (P12) |
| Output | Lemo (CCM-L) or XLR-3M (CCM-K), analog, 1 channel |
| Output Impedance | 90 Ω @ 1 kHz |
| Length | 46 mm (CCM-L) |
| Diameter | 20 mm |
| Weight | 33 g (CCM-L) |
