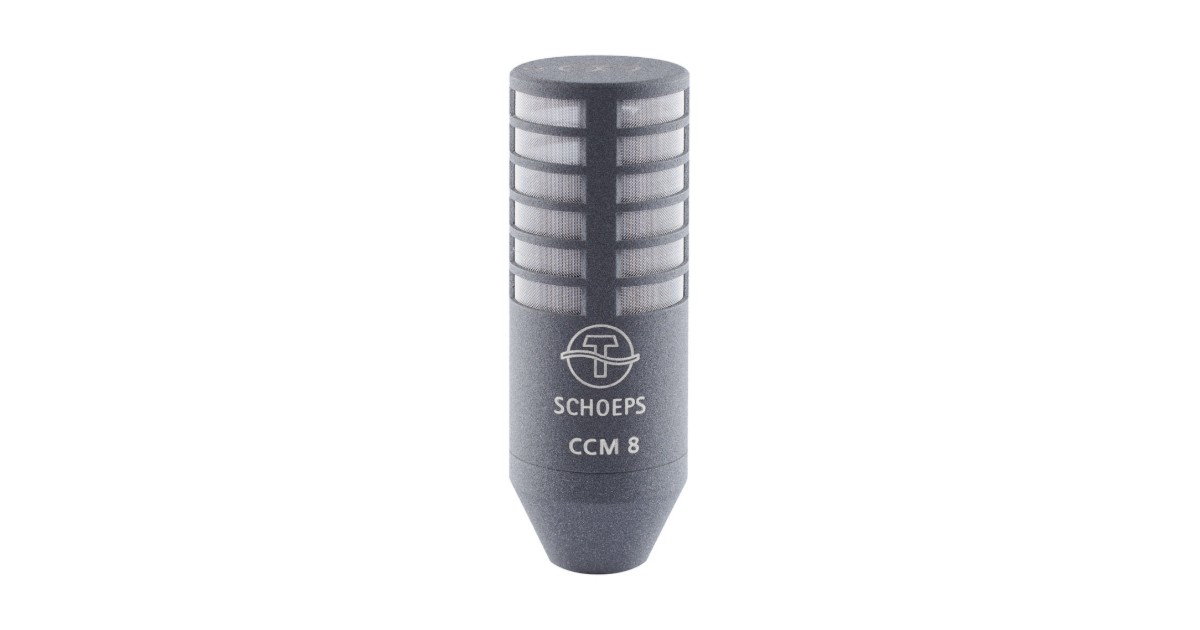

Schoeps CCM 8 Compact Microphone
ActiveUpdated by GEARMATH
Compact figure-of-eight condenser for M/S rigs and Blumlein pairs, pairing with a CCM 4 or CCM 41 in short stereo blimps.
View: Blueprint · Photo
Technical Registry
Audio
| Polar Pattern | Figure-of-eight |
|---|---|
| Frequency Range | 40 Hz - 15 kHz |
| Sensitivity | -38,5 dB (V/Pa) |
| Max SPL (0.5% THD) | 136 dB-SPL (P48), 128 dB-SPL (P12) |
| Low Cut | 20 Hz, 12 dB/oct |
| Max Output Voltage | 2,6 V (8,3 dbV) with 2 kΩ load |
Physical
| Powering | P48 / >40 V, P12 / >10 V |
|---|---|
| Current Draw | 4 mA (P48), 3,6 mA (P12) |
| Output | Lemo (CCM-L) or XLR-3M (CCM-K), analog, 1 channel |
| Output Impedance | 90 Ω @ 1 kHz |
| Length | 58 mm |
| Diameter | 20 mm |
| Weight | 43 g |
