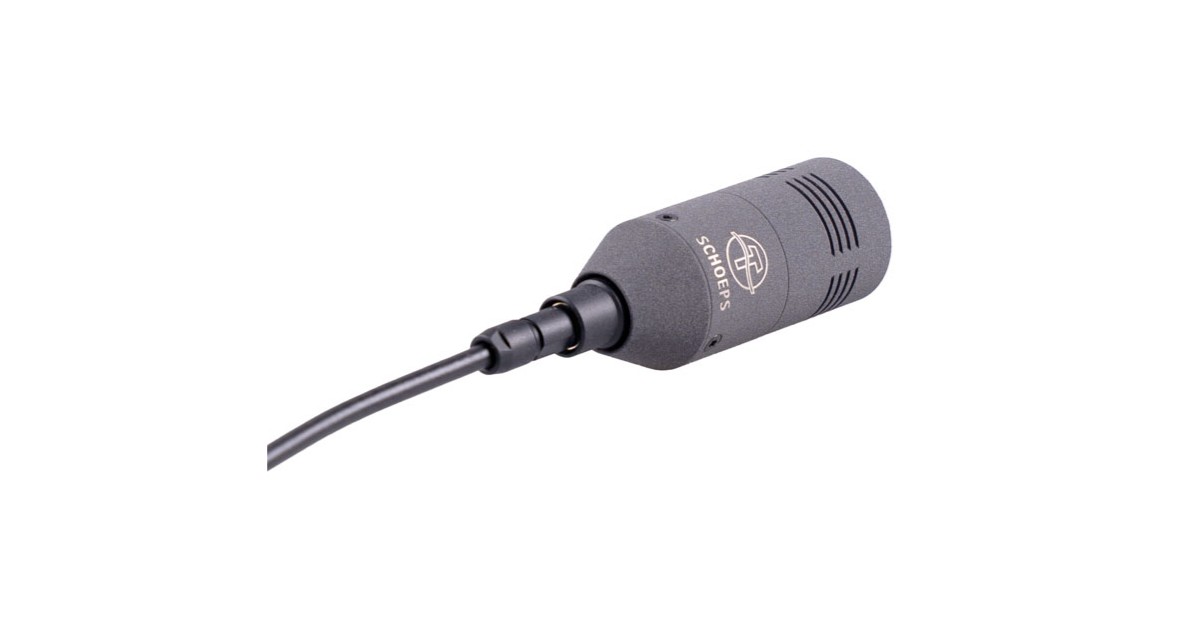

Schoeps CMC 1 L Microphone Amplifier
ActiveUpdated by GEARMATH
Miniature 25.5 mm Colette amplifier with a Lemo output, letting MK capsules be hidden on set, in cars or on plant positions with a very small footprint and 135 dB SPL headroom.
View: Blueprint · Photo
Technical Registry
Audio
| Frequency Range | 20 Hz-20 kHz |
|---|---|
| Max SPL (0.5% THD) | 135 dB-SPL (P48) with MK 4, 131 dB-SPL (P12) with MK 4 |
| Low Cut | 20 Hz, 12dB/oct |
| Max Output Voltage | 1,8 V (5 dbV) with 1kΩ load |
Physical
| Powering | P48 / 30-52 V, P12 / 11-13 V |
|---|---|
| Current Draw | 2mA (P48), 3 mA (P12) |
| Output | Lemo, analog, 1 channel |
| Output Impedance | 50 Ω +/- 1 Ω (8 Hz - 50 kHz) |
| Length | 25.5 mm / ~1 '' |
| Diameter | 20 mm / 0.8'' |
| Weight | 28 g / ~1 oz |
