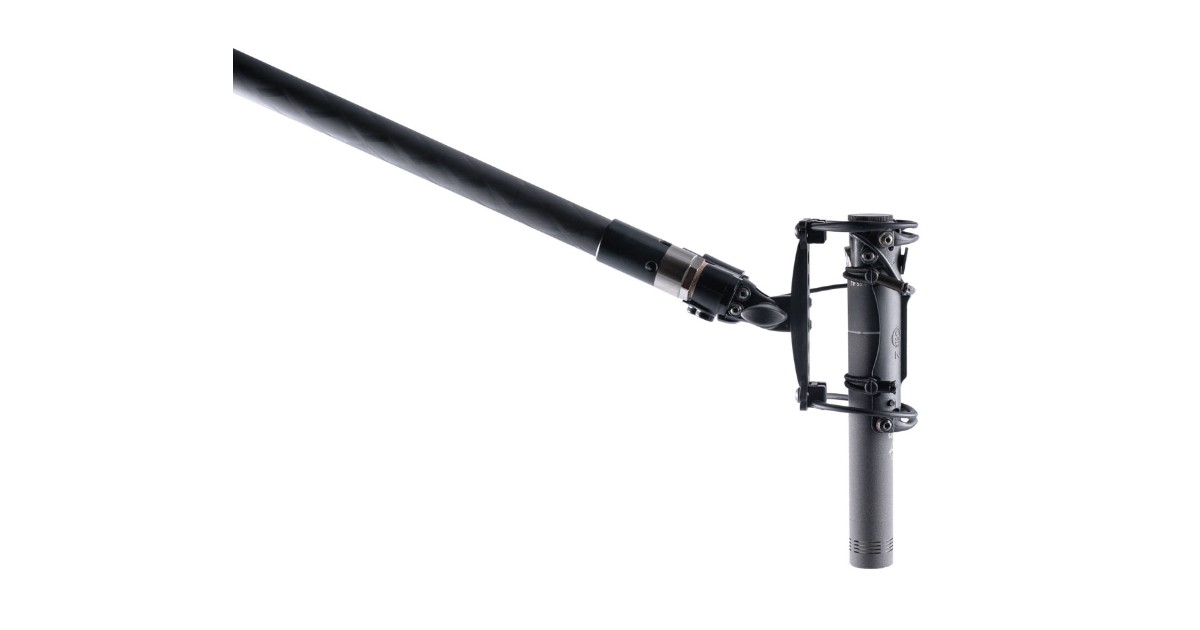

Schoeps CMD 42 Digital Microphone Amplifier
ActiveUpdated by GEARMATH
AES42 digital Colette amplifier with remote-controllable pattern-agnostic gain, pad, filters and limiter, supporting sample rates up to 192 kHz for broadcast and recording.
View: Blueprint · Photo
Technical Registry
Audio
| Frequency Range | 8 Hz - 96 kHz |
|---|---|
| Sensitivity | with MK 2: -40 dBFS at 1 Pa |
| Self Noise (A-weighted) | with MK 2: 12 dB |
| Max SPL (0.5% THD) | with MK 2: pad inactive: 134 dB-SPL, pad active: 152 dB-SPL |
| Latency | Pure Mode: 11 Samples = 0,06 ms @ 192 kHz, Full Mode: 2.2 ms, Peak Limiter: 1 ms |
| Sample Rate | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
Physical
| Powering | AES42, 24 bit / 6-12 V |
|---|---|
| Current Draw | 120 mA at 10 V |
| Output | XLR-3M, digital: AES42, Mode 1 or 2, 2 channels |
| Length | 116 mm |
| Diameter | 20 mm |
| Weight | 70 g |
