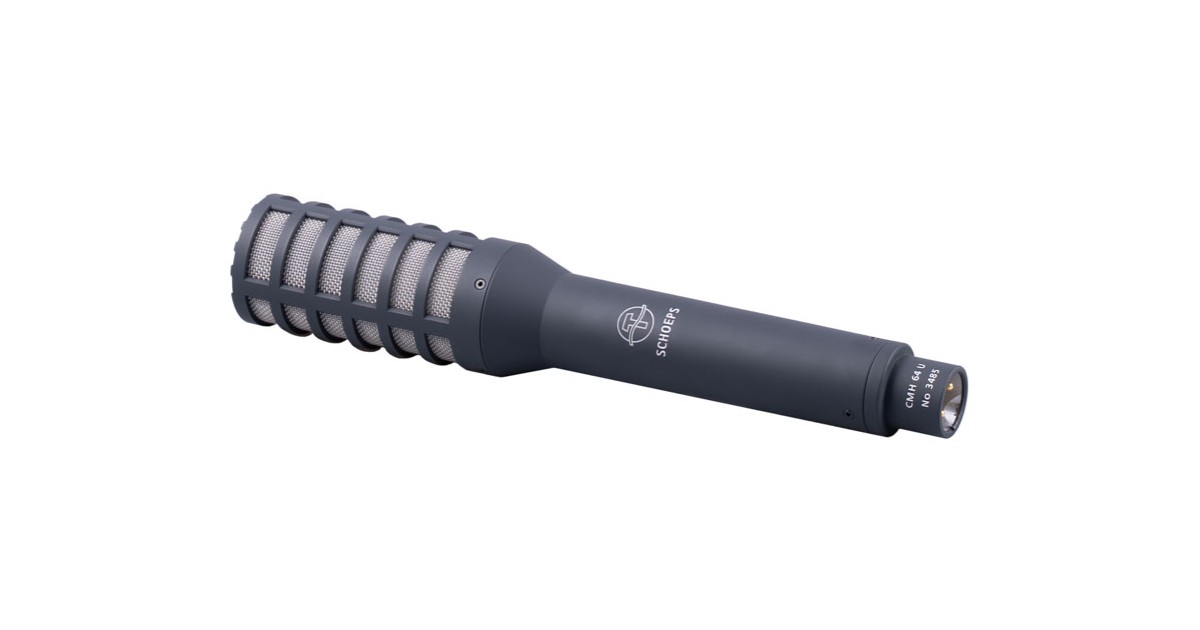

Schoeps CMH Handheld Microphone

Active
Schoeps·audio·TBD

Updated by GEARMATH

Supercardioid handheld condenser for voice and vocals, built around Schoeps capsule technology in a rugged body with low handling noise.

View: Blueprint · Photo
Schoeps CMH Handheld Microphone
ShareSuggest a changeROI Calculator
Manufacturer page · schoeps.de

Technical Registry

Audio

Polar PatternSupercardioid
Frequency Range40 Hz - 19 kHz
Sensitivity-36,5 dB (V/Pa), 15 mV/Pa
Self Noise (A-weighted)14 dB
SNR (A-weighted)80 dB
Max SPL (0.5% THD)130 dB-SPL
Low Cut60 Hz, 12 dB/oct.
Max Output Voltage1 V (0 dBV) with 1 kΩ load

Physical

PoweringP48 / >20 V, P12 / >10 V
Current Draw4 mA (P48), 8 mA (P12)
OutputXLR-3M, analog, 1 channel
Output Impedance42 Ω
Length210 mm
Diameter37 / 22 mm
Weight190 g
