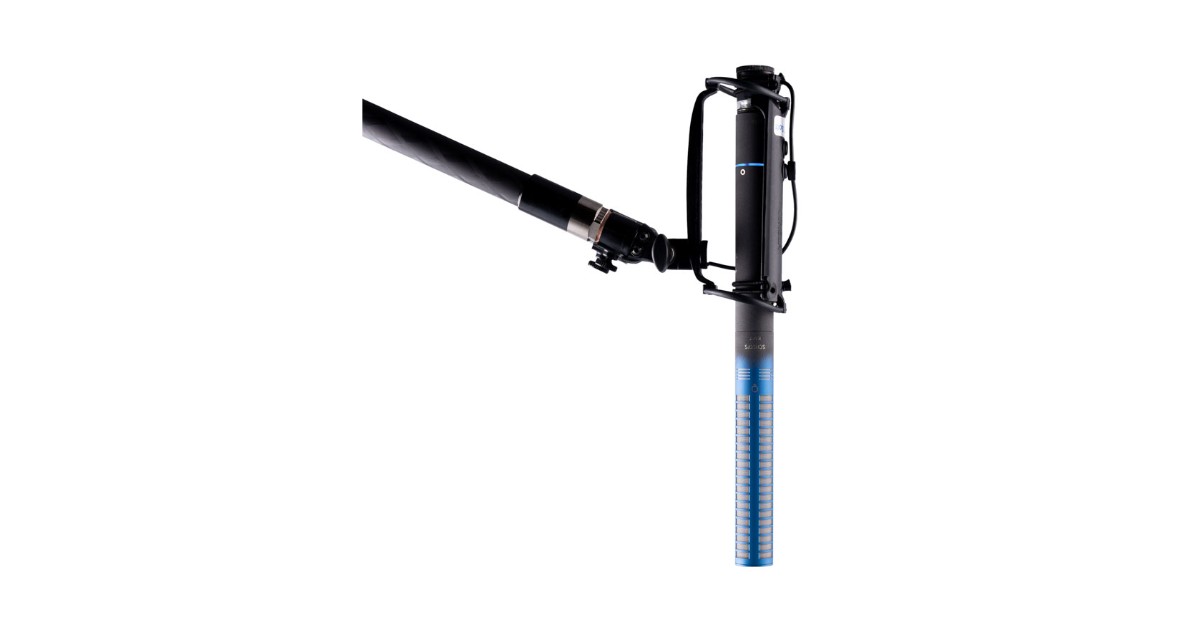

Short interference-tube capsule for the Colette system that turns a CMC 1, CMC 6 or CMD 42 amplifier into a compact boom shotgun, at 122 mm long and 50 g for interior dialogue.

View: Blueprint · Photo
Schoeps KMIT Shotgun Capsule
ShareSuggest a changeROI Calculator
Manufacturer page · schoeps.de

Technical Registry

Audio

Polar PatternSupercardioid / lobe-shaped
Frequency Range70 Hz - 22 kHz with CMC 1/CMC 6, 70 Hz - 40 kHz with CMC 6xt/CMD 42
Self Noise (A-weighted)14 dB
Max SPL (0.5% THD)130 dB-SPL with CMC 6, 133 dB-SPL with CMC 1, 133 dB-SPL with CMD 42
Low Cut70 Hz, 21 dB/Oct with CMC 1/ CMC 6, 60 Hz, 22 dB/Oct with CMC 6 xt/CMD 42

Physical

Current DrawP48: 4,2 mA with CMC 6, 3,1 mA with CMC 1
Length122 mm, Mono-Set with CMC 1 KV: 144 mm, Mono-Set with CMC 1 L: 148 mm, Mono-Set with CMC 1 U: 158 mm, Mono-Set with CMC 6/CMD 42: 234 mm
Weight50 g; Mono-Set with CMC 1 KV: 83 g; Mono-Set with CMC 1 L: 78 g; Mono-Set with CMC 1 U: 86 g; Mono-Set with CMC 6: 110 g
