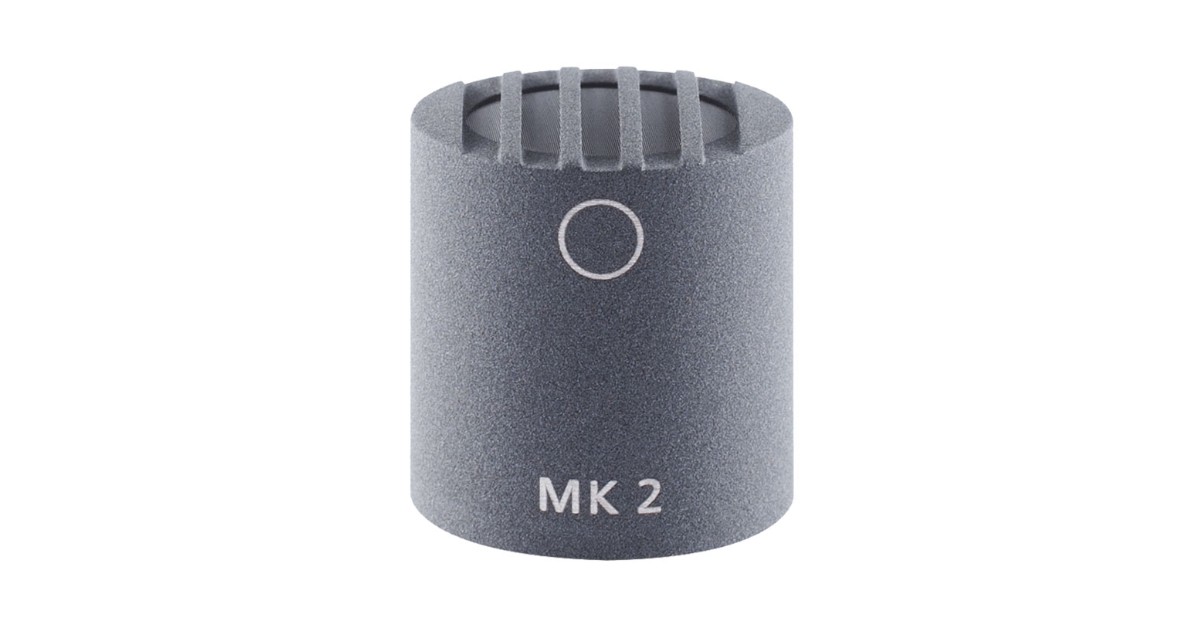

Schoeps MK 2 Omni Capsule
ActiveUpdated by GEARMATH
Omnidirectional pressure capsule for the Colette system with 10 dB-A self noise and flat free-field response, used for ambience, plant mics and spaced pairs.
View: Blueprint · Photo
Technical Registry
Audio
| Polar Pattern | Omnidirectional |
|---|---|
| Frequency Range | 20 Hz - 28 kHz 20 Hz - 40 kHz with CMC 6xt |
| Sensitivity | -35.5 dB (V/Pa), 17 mV/Pa |
| Self Noise (A-weighted) | 10 dB |
| SNR (A-weighted) | 84 dB |
| Max SPL (0.5% THD) | 130 dB-SPL with CMC 6 134 dB-SPL with CMC 1 |
Physical
| Length | 22 mm |
|---|---|
| Diameter | 20 mm |
| Weight | 17 g |
