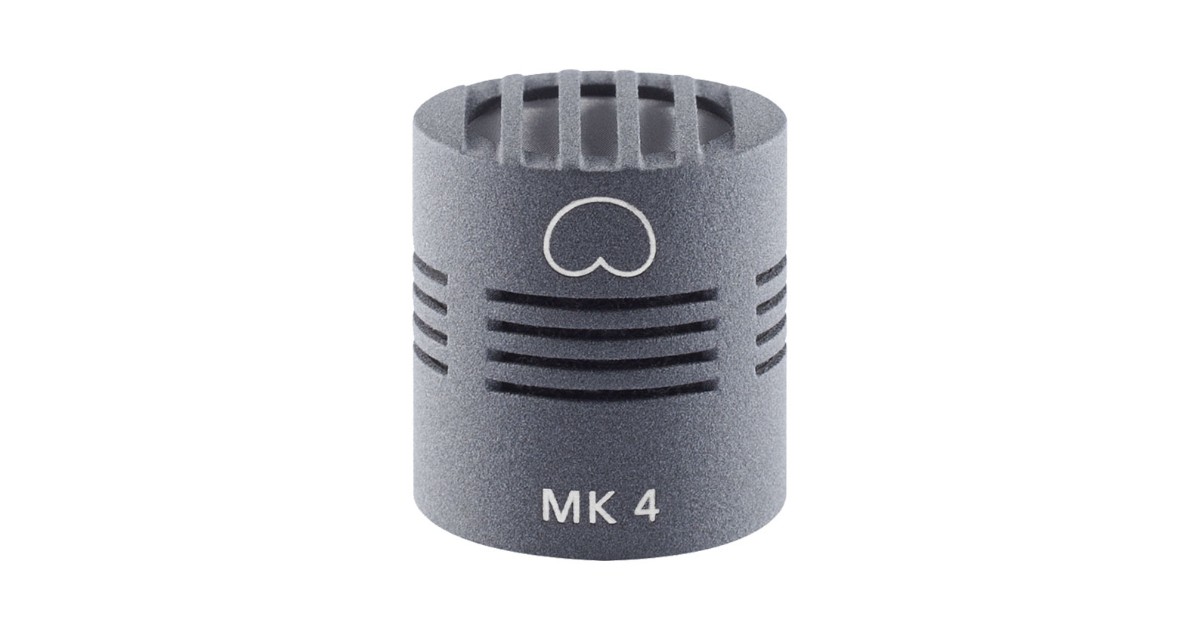

Schoeps MK 4 Cardioid Capsule
ActiveUpdated by GEARMATH
Cardioid Colette capsule with a very even polar response, used for interior dialogue, Foley, music and as the M or X-Y element in stereo setups.
View: Blueprint · Photo
Technical Registry
Audio
| Polar Pattern | Cardioid |
|---|---|
| Frequency Range | 40 Hz - 26 kHz, 40 Hz - 41 kHz with CMC 6xt |
| Sensitivity | -36.5 dB (V/Pa), 15 mV/Pa |
| Self Noise (A-weighted) | 14 dB |
| SNR (A-weighted) | 80 dB |
| Max SPL (0.5% THD) | 131 dB-SPL with CMC 6, 135 dB-SPL with CMC 1 |
Physical
| Length | 22 mm |
|---|---|
| Diameter | 20 mm |
| Weight | 17 g |
