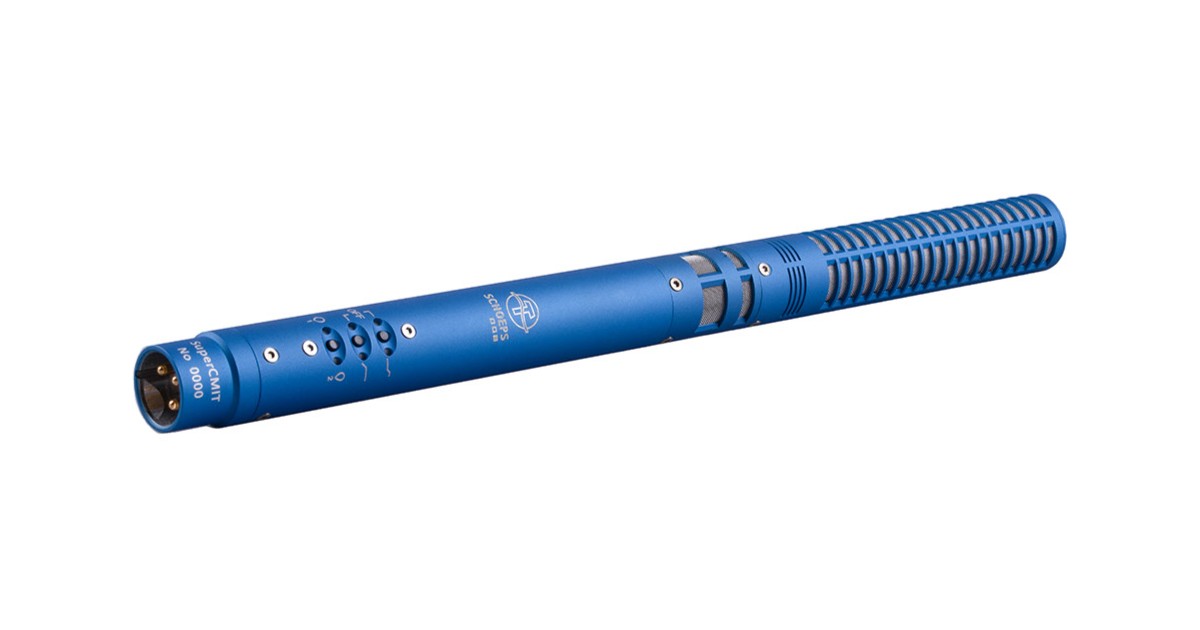

Schoeps SuperCMIT 2 U

Active
Schoeps·audio·TBD

Updated by GEARMATH

DSP-enhanced digital shotgun that outputs a processed high-directivity channel alongside the raw CMIT signal over AES42, suppressing diffuse ambience by up to 15 dB for dialogue in noisy locations.

View: Blueprint · Photo
Schoeps SuperCMIT 2 U
ShareSuggest a changeROI Calculator
Manufacturer page · schoeps.de

Technical Registry

Audio

Polar PatternSupercardioid / lobe-shaped
Frequency Range40 Hz - 20 kHz
Sensitivity-31 dBFS at 1 Pa
Self Noise (A-weighted)14 dB (channel 1), 16 dB (channel 2)
SNR (A-weighted)80 dB (channel 1), 78 dB (channel 2)
Max SPL (0.5% THD)125 dB-SPL
Low Cutswitchable, 80 Hz, 18 dB/oct.
High Shelfswitchable, +5 dB at 10 kHz
Latencychannel 1: 1.6-6.25 ms (frequency-dependent), channel 2: 1.6 ms

Physical

PoweringAES42 / >6 V
Current Draw170 mA
OutputXLR-3M, digital: AES42 Mode 1, 48 kHz, Channel 1: SuperCMIT, Channel 2: Unprocessed shotgun
Output Impedance110 Ω
Length280 mm
Diameter21 mm
Weight112 g
