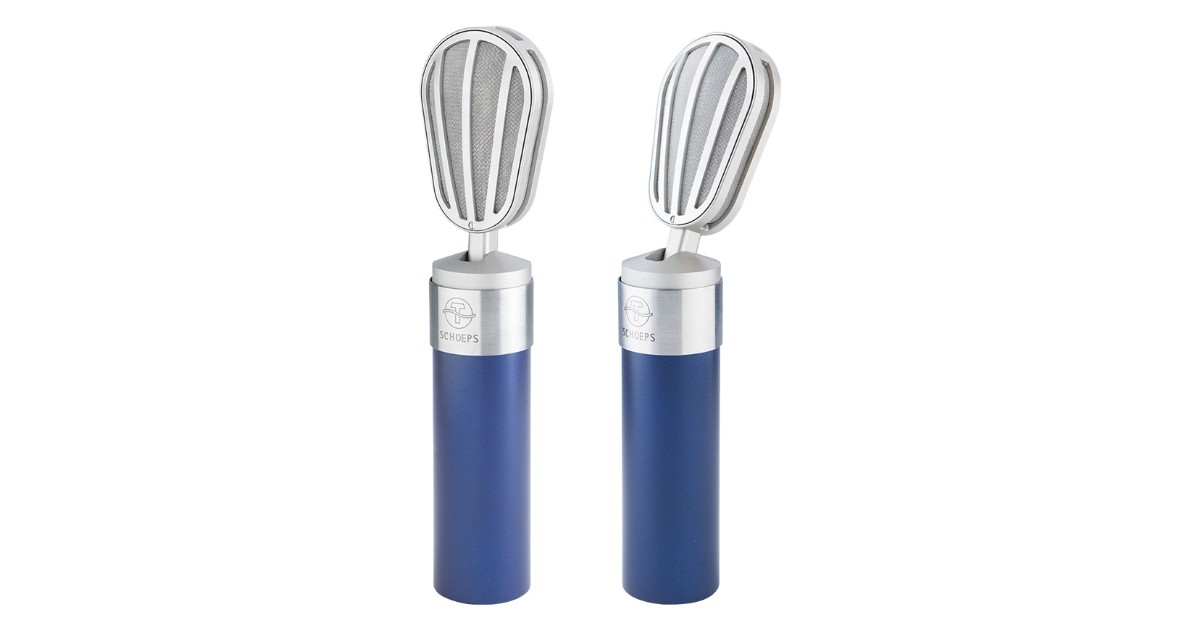

Schoeps V4 Studio Microphone

Active
Schoeps·audio·TBD

Updated by GEARMATH

Side-address cardioid studio condenser with a swivelling head and 144 dB SPL handling, voiced for voice-over, vocals and instrument recording.

View: Blueprint · Photo
Schoeps V4 Studio Microphone
ShareSuggest a changeROI Calculator
Manufacturer page · schoeps.de

Technical Registry

Audio

Polar PatternCardioid
Frequency Range50 Hz - 22 kHz
Sensitivity-36 dB (V/Pa), 16 mV/Pa
Self Noise (A-weighted)15 dB
SNR (A-weighted)79 dB
Max SPL (0.5% THD)144 dB-SPL
Low Cut40 Hz, 18 dB/oct.
Max Output Voltage4.8 V (13 dBV) with 1 kΩ load

Physical

PoweringP 48 / >43 V
Current Draw3.3 mA
OutputXLR-3M, analog, 1 channel
Output Impedance50 Ω
Length194 mm
Diameter34 mm
Weight302 g
